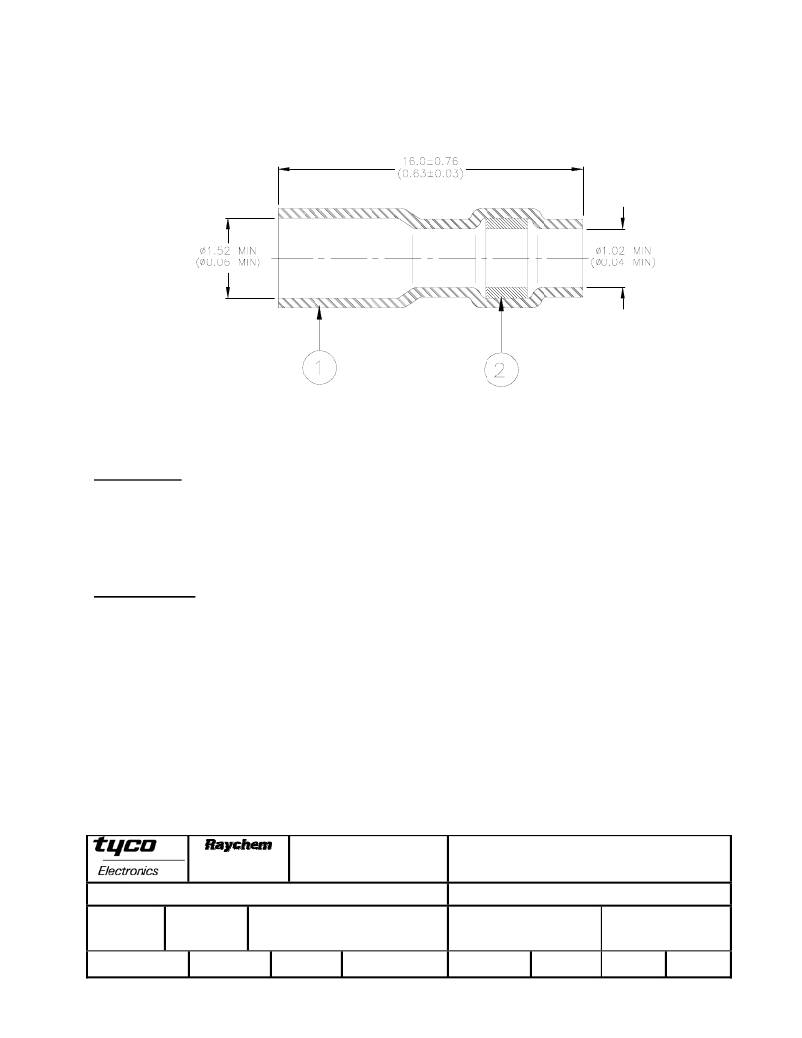

SPECIFICATION CONTROL DRAWING

MATERIALS

1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified

polyvinylidene fluoride.

2. SOLDER PREFORM WITH FLUX:

SOLDER: TYPE Sn63 per ANSI J-STD-006.

FLUX: TYPE ROL1 per ANSI-J-STD-004.

APPLICATION

1. This sleeve is designed to splice a miniature coaxial cable to a 30 gauge twisted pair. Two sleeves

required.

2. Sleeve will recover to 0.635 (0.025) maximum I.D.

Tyco Electronics Corporation

300 Constitutional Drive

Menlo Park, CA 94025 USA

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.

INCHES DIMENSIONS ARE BETWEEN BRACKETS.

TITLE:

SOLDERSLEEVE WIRE TERMINATOR

COAX TO TWISTED PAIR SPLICE

DOCUMENT NO.: D-110-0062

TOLERANCES:

0.00 N/A

0.0 N/A

ANGLES: N/A

ROUGHNESS IN

Tyco reserves the right to amend this drawing at

any time. Users should evaluate the suitability of

the product for their application.

DATE:

06-July-00

DOC ISSUE:

0 N/A

MICRON

DRAWN BY:

M. FORONDA

CAGE CODE:

06090

REPLACES:

N/A

DCR NUMBER:

D990735

PROD. REV.:

SCALE:

None

SIZE:

SHEET:

1 of 1

If this document is printed it becomes uncontrolled. Check for the latest revision.
